Multifunction PV tester

Multifunction PV tester

SKU: BKM PVCHECK Category:

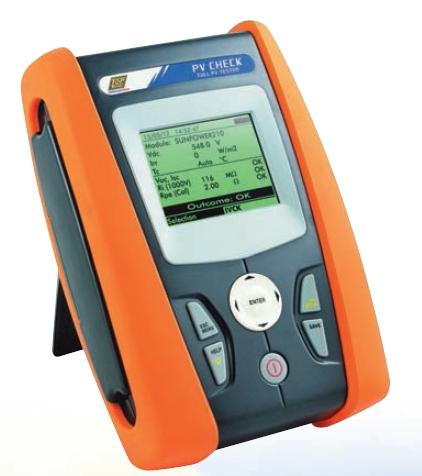

PVCHECK: Multifunction instrument to check safety, parameters and performance of a PV plant

Function
  • Safety test of PV installation
  • Continuity test on protective conductors with 200mA
  • Insulation test with test voltage of 250, 500, 1000VDC
  • DC voltage
  • DC current
  • DC Power
  • Solar irradiation [W/m2] with reference cell
  • Environmental  and module temperature by means of PT1000 probe
  • SOLAR-02: remote unit for irradiance and temperature measurements (RF connection).
  • Recording of PV plant parameters (DC side) with programmable IP (5s – 60min)
  • Use of PDC compensation ratios according to environmental and module temperature
  • Use of relationship to maximize the DC efficiency
  • Outcome OK/NO
  • Check of PV string’s working
  • Measurement of open circuit voltage up to 1000V DC
  • Measurement of short circuit current up to 10A DC
  • Measurement of temperature, automatic or by means of  PT1000 probe
  • Measurement of solar radiation [W/m2] with reference cell
  • Mechanical inclinometer for the detection of solar radiation incidence angle
  • Comparison with standard conditions (STC 1000 W/m2, 25°C)
  • Outcome of testing: OK / NO
  • Database to manage up to 30 types of photovoltaic modules
  • Internal memory for data saving
  • Optical/USB port for PC connection
  • Help on line on display

Codmetel : HV000PVC

PVCHECK

Check the insulation of the entire PV array with a single test.

No longer need to wait for the night or cover the photovoltaic modules to verify insulation of the modules … HT PVCHECK is able to perform the verification of the insulation system with voltage without the need to use an external switch to put in short-circuit the positive and negative terminals.



Available values for insulation test:



-250V

-500V

-1000V


PVCHECK

Performance Analysis of the photovoltaic field.

HT CHECK PV also allows the execution of performance analysis of the PV array (DC) of the operating conditions (then connected to the inverter) with the use of optional accessories SOLAR-02, HT304N and PT300N providing an indication of the generated power and performance the same field as indicated by IEC/EN62446.


PVCHECK

MC3 o MC4?

No problem.

HT PV Check has booth adapters MC3 and MC4 as standard accessories.


PVCHECK

Reference Cell HT304N

The HT PV CHECK as optional accessory has a reference cell that is located next to the photovoltaic module using the appropriate bracket, will measure the solar radiation. This is necessary to calculate the performance of the plant in operating conditions.



There are two types of sensors:

– Monocrystalline

– Polycrystalline


PVCHECK

Temperature probe PT300N

The optional temperature probe will be positioned on the back of the photovoltaic module in order to compensate for the drop in performance of the module as a function of temperature.


PVCHECK

Excessive distances?

No problem.

The optional accessory Solar02 will be synchronized with HT PVCHECK so you can measure temperature and radiation away from the the instrument into the range of the wireless connection.


PVCHECK



Software Top View

Creating Professional-Quality Reports.

Management of 30,000 photovoltaic panels.

Performance and safety tests visualization.


STANDARD
  • KITGSC4 : Set 4 cables + 4 alligator clips
  • KITPCMC3 : Set of 2 multi-contact one wire for MC3 connectors
  • KITPCMC4 : Set 2 multi-contact one wire for MC4 connectors
  • HT4004 : Standard clamp for  DC current up to 100A
  • TOPVIEW2006 : Windows software + optical/USB cable C2006
  • BORSA2051 : Soft carrying bag
  • User manual on CD-ROM
  • Quick reference guide
  • ISO9000 calibration certificate
OPTIONAL
  • SOLAR-02 : Remote unit for irradiance/temperature
  • HT304N : Reference cell for radiation measurements
  • PT300N : PT1000 probe for cell temperature measurement
  • M304 : Mechanical inclinometer
  • SP-0400 : Set of straps for use of meter on neck
Standards

EMC 2004/108/CE Directive
CE MARK
IEC/EN 61010-032
IEC/EN 61010-1
IEC/EN61557-1
IEC/EN61557-2
IEC/EN61557-4
IEC/EN62446
LVD 2006/95/CE Directive
