Industrial bit TORX PLUS 8IP shank 1/4 inch C6.3, length 25mm (PU6)

BERNSTEIN

SKU: BRN 6-IP08-25 Category:

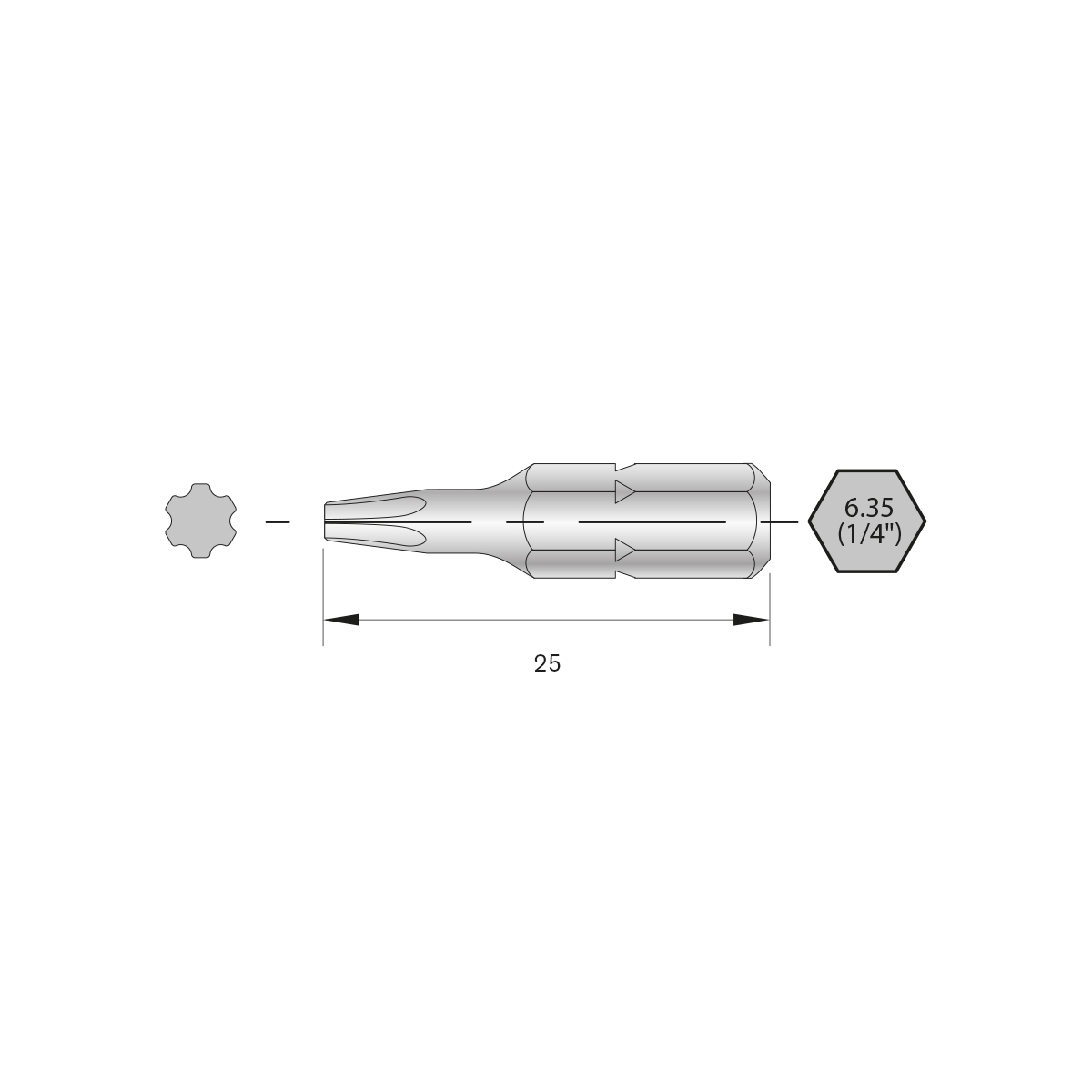

Suitable bits for our torque adapters or bit holders. These TORX-PLUS bits with � inch hexagon socket are for professional use. Manufactured according to DIN 3126 from wear-resistant, high-alloy steel and have a hardness of 58-60 HRC. Packing unit 6 pieces of the same sizes in a bit bar. There are different bit lengths 25 mm, 50 mm and 75 mm, which should be reasonably selected depending on the application. The available sizes range from T6 to T25 and have different tightening torques (Nm), the max. torque varies depending on the screw material. The color ring identification on the bit simplifies the differentiation of different sizes at the workplace.##6IP (0.75-0.9 Nm, corresponds to screw size M2, M3), 7IP (1.4-1.7 Nm), 8IP (2.2-2.6 Nm, corresponds to screw size M2.5, M4), 9IP (2.8-3.4 Nm), 10IP (3.7-4. 5 Nm, corresponds to screw size M3, M5), 15IP (6.4-7.7 Nm, corresponds to screw size M3.5, M6), 20IP (10.5-12.7 Nm, corresponds to screw size M4), 25IP (15.9-19 Nm, corresponds to screw size M5, M8)Accessories for torque adaptershigh wear-resistant industrial bitswith color ring identifierBit length 25 mmBit length 25 mmShank 1/4 inch (6.35mm) C6.3Material high alloy steel HRC 58-60manufactured according to DIN3126Content 6 pcsWeight 32 g
